标准浸入式套管均为球形接头。标准长度为100mm，能够满足绝大多数的应用需求, 与此同时, 长度可根据特殊应用进行调整。
|

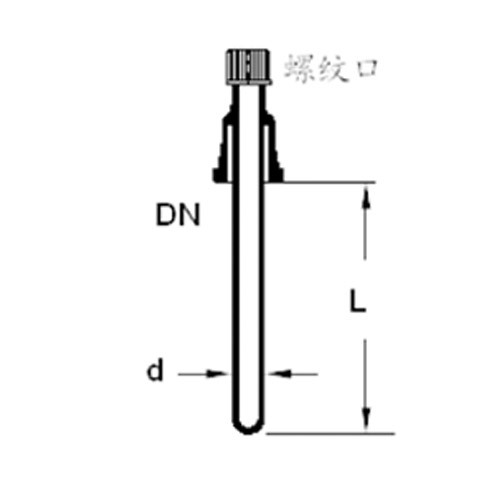

DN |
螺纹规格 |
L |
d (mm) |
订货号 |
|
DN25 |
28 |
X2) |
18 |
QTA-WTG-25B |
|
DN40 |
28 |
X2) |
18 |
QTA-WTG-40B |
|
DN50 |
28 |
X2) |
18 |
QTA-WTG-50B |
|
DN80 |
28 |
X2) |
18 |
QTA-WTG-80B |
|
DN100 |
28 |
X2) |
18 |
QTA-WTG-100B |
1) 订购时请确认长度
|
DN |
螺纹规格 |
L |
d (mm) |
订货号 |
|
DN25 |
28 |
100 |
18 |
QCK-WD-25/100B |
|
DN25 |
28 |
125 |
18 |
QCK-WD-25/125B |
|
DN25 |
28 |
175 |
18 |
QCK-WD-25/175B |
|
DN25 |
28 |
200 |
18 |
QCK-WD-25/200B |
|
DN |
螺纹规格 |
L |
d (mm) |
订货号 |
|
DN40 |
28 |
125 |
18 |
QCK-WD-40/125B |
|
DN40 |
28 |
175 |
18 |
QCK-WD-40/175B |
|
DN40 |
28 |
200 |
18 |
QCK-WD-40/200B |
|
DN40 |
28 |
250 |
18 |
QCK-WD-40/250B |
|
DN |
螺纹规格 |
L |
d (mm) |
订货号 |
|
DN50 |
28 |
200 |
18 |
QCK-WD-50/200B |
|
DN50 |
28 |
250 |
18 |
QCK-WD-50/250B |
|
DN50 |
28 |
300 |
18 |
QCK-WD-50/300B |
|
DN50 |
28 |
400 |
18 |
QCK-WD-50/400B |
