盘管式冷却器由硼硅酸盐玻璃制成，特别适用于高侵蚀性介质的冷凝和冷却，可以通过串联和并联几个冷却器来满足更大冷凝面的需求。
|

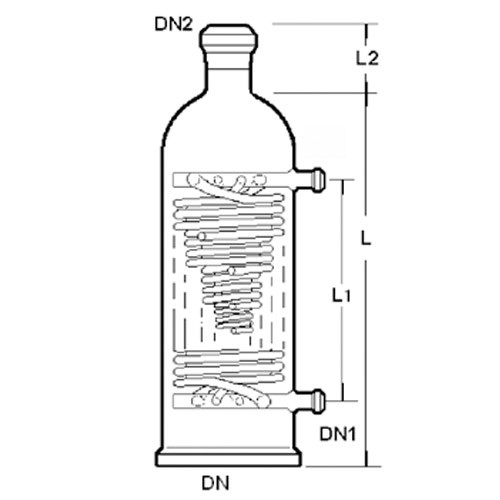

换热面积 |
DN |
DN1 |
DN2 |
L1 |
L2 |
L3 |
订货号 |
|
㎡ |
|
|
|
mm |
mm |
mm |
|
|
0.3 |
DN100 |
DN15 |
DN25 |
450 |
300 |
65 |
QHR-PG-100/25A |
|
0.3 |
DN100 |
DN15 |
DN40 |
450 |
300 |
80 |
QHR-PG-100/40A |
|
0.3 |
DN100 |
DN15 |
DN50 |
450 |
300 |
85 |
QHR-PG-100/50A |
|
0.3 |
DN100 |
DN15 |
DN80 |
450 |
300 |
100 |
QHR-PG-100/80A |
|
换热面积 |
DN |
DN1 |
DN2 |
L1 |
L2 |
L3 |
订货号 |
|
㎡ |
|
|
|
mm |
mm |
mm |
|
|
0.6 |
DN150 |
DN25 |
DN25 |
525 |
355 |
65 |
QHR-PG-150/25A |
|
0.6 |
DN150 |
DN25 |
DN40 |
525 |
355 |
80 |
QHR-PG-150/40A |
|
0.6 |
DN150 |
DN25 |
DN50 |
525 |
355 |
85 |
QHR-PG-150/50A |
|
0.6 |
DN150 |
DN25 |
DN80 |
525 |
355 |
100 |
QHR-PG-150/80A |
|
0.6 |
DN150 |
DN25 |
DN100 |
525 |
355 |
125 |
QHR-PG-150/100A |
|
换热面积 |
DN |
DN1 |
DN2 |
L1 |
L2 |
L3 |
订货号 |
|
㎡ |
|
|
|
mm |
mm |
mm |
|
|
1.0 |
Ø180 |
DN25 |
DN25 |
620 |
430 |
65 |
QHR-PG-180/25A |
|
1.0 |
Ø180 |
DN25 |
DN40 |
620 |
430 |
80 |
QHR-PG-180/40A |
|
1.0 |
Ø180 |
DN25 |
DN50 |
620 |
430 |
85 |
QHR-PG-180/50A |
|
1.0 |
Ø180 |
DN25 |
DN80 |
620 |
430 |
100 |
QHR-PG-180/80A |
|
1.0 |
Ø180 |
DN25 |
DN1001) |
620 |
430 |
125 |
QHR-PG-180/100A |
|
换热面积 |
DN |
DN1 |
DN2 |
L1 |
L2 |
L3 |
订货号 |
|
m2 |
|
|
|
mm |
mm |
mm |
|
|
1.5 |
Ø230 |
DN40 |
DN25 |
725 |
485 |
65 |
QHR-PG-230/25A |
|
1.5 |
Ø230 |
DN40 |
DN40 |
725 |
485 |
80 |
QHR-PG-230/40A |
|
1.5 |
Ø230 |
DN40 |
DN50 |
725 |
485 |
85 |
QHR-PG-230/50A |
|
1.5 |
Ø230 |
DN40 |
DN80 |
725 |
485 |
100 |
QHR-PG-230/80A |
|
1.5 |
Ø230 |
DN40 |
DN1001) |
725 |
485 |
125 |
QHR-PG-230/100A |
|
换热面积 |
DN |
DN1 |
DN2 |
L1 |
L2 |
L3 |
订货号 |
|
m2 |
|
|
|
mm |
mm |
mm |
|
|
2.0 |
DN300 |
DN50 |
DN50 |
760 |
485 |
85 |
QHR-PG-300/50A |
|
2.0 |
DN300 |
DN50 |
DN80 |
760 |
485 |
100 |
QHR-PG-300/80A |
|
2.0 |
DN300 |
DN50 |
DN100 |
760 |
485 |
125 |
QHR-PG-300/100A |
1) DN150~DN300 为法兰平口
