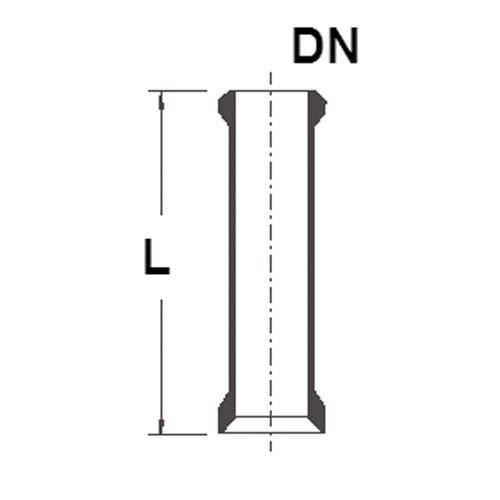

在设计和实施管道系统时，尽可能降低整体成本。标准长度通常是(L 短= 100mm，L 长= 2500mm)。
然而，非标准长度有时是不可避免的。这种长度可以在规定的蕞小值和蕞大值范围内订购，具体如下:
|
内球口 |
外球口 |
长度 (mm) |
订货号 |
|
DN15 |
DN15 |
100 |
QGD-15/100A |
|
DN15 |
DN15 |
125 |
QGD-15/125A |
|
DN15 |
DN15 |
150 |
QGD-15/150A |
|
DN15 |
DN15 |
175 |
QGD-15/175A |
|
DN15 |
DN15 |
200 |
QGD-15/200A |
|
DN15 |
DN15 |
300 |
QGD-15/300A |
|
DN15 |
DN15 |
400 |
QGD-15/400A |
|
DN15 |
DN15 |
500 |
QGD-15/500A |
|
DN15 |
DN15 |
700 |
QGD-15/700A |
|
DN15 |
DN15 |
1000 |
QGD-15/1000A |
|
DN15 |
DN15 |
1500 |
QGD-15/1500A |
|
DN15 |
DN15 |
2000 |
QGD-15/2000A |
|
|
|
|
|
|
DN25 |
DN25 |
100 |
QGD-25/100A |
|
DN25 |
DN25 |
125 |
QGD-25/125A |
|
DN25 |
DN25 |
150 |
QGD-25/250A |
|
DN25 |
DN25 |
175 |
QGD-25/175A |
|
DN25 |
DN25 |
200 |
QGD-25/200A |
|
DN25 |
DN25 |
300 |
QGD-25/300A |
|
DN25 |
DN25 |
400 |
QGD-25/400A |
|
DN25 |
DN25 |
500 |
QGD-25/500A |
|
DN25 |
DN25 |
700 |
QGD-25/700A |
|
DN25 |
DN25 |
1000 |
QGD-25/1000A |
|
DN25 |
DN25 |
1500 |
QGD-25/1500A |
|
DN25 |
DN25 |
2000 |
QGD-25/2000A |
|
DN25 |
DN25 |
2500 |
QGD-25/2500A |
|
|
|
|
|
|
DN40 |
DN40 |
100 |
QGD-40/100A |
|
DN40 |
DN40 |
125 |
QGD-40/125A |
|
DN40 |
DN40 |
150 |
QGD-40/400A |
|
DN40 |
DN40 |
175 |
QGD-40/175A |
|
DN40 |
DN40 |
200 |
QGD-40/200A |
|
DN40 |
DN40 |
300 |
QGD-40/300A |
|
DN40 |
DN40 |
400 |
QGD-40/400A |
|
DN40 |
DN40 |
500 |
QGD-40/500A |
|
DN40 |
DN40 |
700 |
QGD-40/700A |
|
DN40 |
DN40 |
1000 |
QGD-40/1000A |
|
DN40 |
DN40 |
1500 |
QGD-40/1500A |
|
DN40 |
DN40 |
2000 |
QGD-40/2000A |
|
DN40 |
DN40 |
2500 |
QGD-40/2500A |
|
|
|
|
|
|
DN50 |
DN50 |
100 |
QGD-50/100A |
|
DN50 |
DN50 |
125 |
QGD-50/125A |
|
DN50 |
DN50 |
150 |
QGD-50/500A |
|
DN50 |
DN50 |
175 |
QGD-50/175A |
|
DN50 |
DN50 |
200 |
QGD-50/200A |
|
DN50 |
DN50 |
300 |
QGD-50/300A |
|
DN50 |
DN50 |
400 |
QGD-50/400A |
|
DN50 |
DN50 |
500 |
QGD-50/500A |
|
DN50 |
DN50 |
700 |
QGD-50/700A |
|
DN50 |
DN50 |
1000 |
QGD-50/1000A |
|
DN50 |
DN50 |
1500 |
QGD-50/1500A |
|
DN50 |
DN50 |
2000 |
QGD-50/2000A |
|
DN50 |
DN50 |
2500 |
QGD-50/2500A |
|
|
|
|
|
|
DN80 |
DN80 |
100 |
QGD-80/100A |
|
DN80 |
DN80 |
125 |
QGD-80/125A |
|
DN80 |
DN80 |
150 |
QGD-80/800A |
|
DN80 |
DN80 |
175 |
QGD-80/175A |
|
DN80 |
DN80 |
200 |
QGD-80/200A |
|
DN80 |
DN80 |
300 |
QGD-80/300A |
|
DN80 |
DN80 |
400 |
QGD-80/400A |
|
DN80 |
DN80 |
500 |
QGD-80/500A |
|
DN80 |
DN80 |
700 |
QGD-80/700A |
|
DN80 |
DN80 |
1000 |
QGD-80/1000A |
|
DN80 |
DN80 |
1500 |
QGD-80/1500A |
|
DN80 |
DN80 |
2000 |
QGD-80/2000A |
|
DN80 |
DN80 |
2500 |
QGD-80/2500A |
